S Series

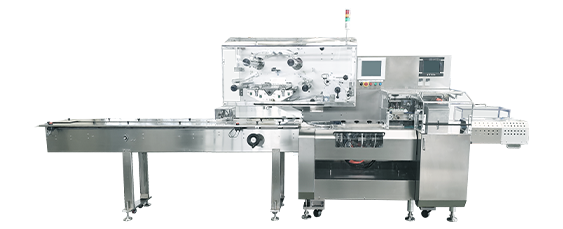

S-6080AJ-BXE Horizontal Packing Machine


Packing Speed

 ≤200Packs/Min(Depending on product specification)

Film Width≤250mm
Product SizeW≤100mm  H≤30mm(Depending on product specification)
Cut-Off Length94- 9999mm
Machine Size(L×W×H)2950×1150×1700mm
Conveyor SizeCan be customized according to demand

Product description
  • BFS
  • Blister sheet
  • PTP

1. Six-axis servo control system for the whole machine, compact design and strong compatibility

2. The original return servo film supply system is equipped with a snaking corrector to ensure the stability of the film feeding under high-speed operation.

3. Jointed film supply head, lowering the center height of the film hanging roller, easy operation and more ergonomic design

4. Equipped with electric cutter, automatic film splicer is more accurate

5. Touch screen to adjust the end sealer pressure, the adjustment is simpler and more convenient

6. The specially designed center sealing and end sealing structure is suitable for aluminum-plastic composite films of different thicknesses, and the sealing lines are clear and without faults

7. Printer, camera detection, various automatic feeding devices are optional
