S Series

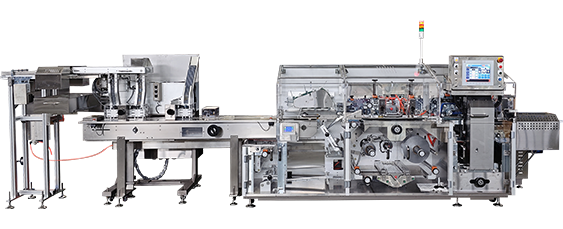

SZ-7680-BXE High Speed Horizontal Packing Machine



Packing Speed

 ≤300Packs/Min(Depending on product specification)

Film Width≤300mm
Product SizeW≤100mm  H≤30mm(Depending on product specification)
Cut-Off Length94- 9999mm
Power11kW
Machine Size(L×W×H)3500×1200×1600mm



Product description
  • BFS
  • Blister sheet
  • PTP



1. Ten-axis servo control for the whole machine, higher stability


2. The original return servo film feeding system is equipped with a snaking corrector to ensure the stability of the film feeding under high-speed operation.


3. Equipped with electric cutter, automatic film splicer, more accurate


4. Equipped with an auxiliary pushing device to make the package transition from the conveyor belt to the bag maker, and the position is more accurate


5. Touch screen to adjust the end sealer pressure, the adjustment is simpler and more convenient


6. Standard reverse top seal, good structural strength and stability


7. The lateral position of the end sealer is adjustable, which simplifies the adjustment steps for changing packaging varieties
